Products > Crystallization Plates, Hardware & Accessories > Sealing Films, Tapes, Mats & Covers > ClearSeal Film™ and Applicator

ClearSeal Film™ and Applicator

Applications

  • Sealing film used to seal sitting drop crystallization experiments

Features

  • High optical clarity, low auto-fluorescence
  • Handling and plate positioning is simplified as a result of the non-tacky adhesive
  • Pressure sensitive adhesive
  • For best results use specially designed applicator

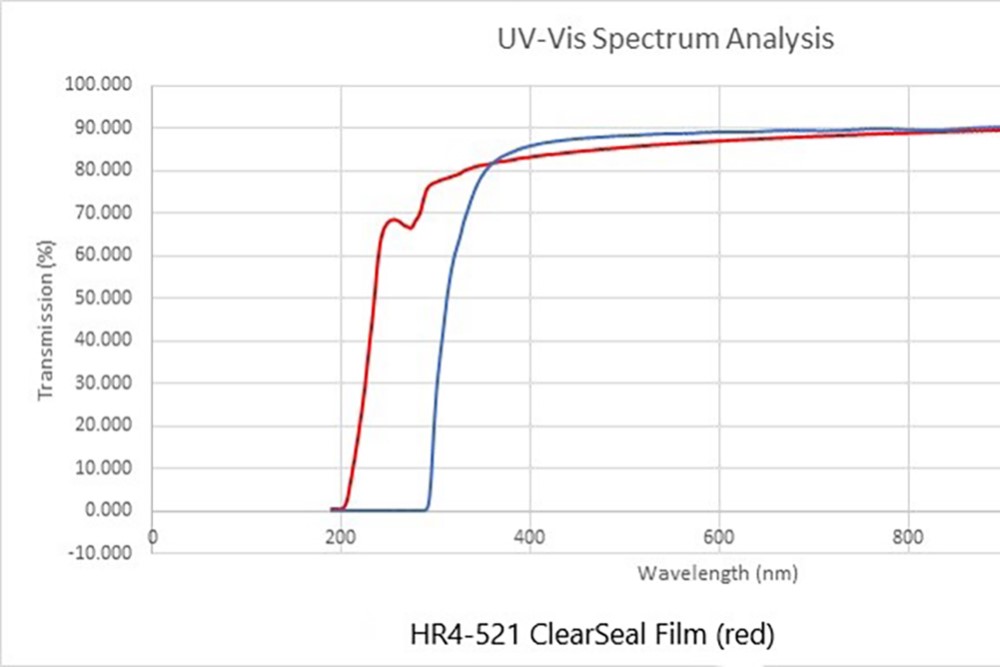

  • UV transmissable, compatible with UV imaging systems
  • Low birefringence
  • Certified DNase-, RNase-, and nucleic-acid-free
  • Silicone adhesive is non-tacky until pressed against the sealing surface with the applicator
  • Chemically inert; no extractable except at extreme pH
  • Excellent chemical resistance (e.g. DMSO, Methanol, Acetonitrile)
  • Heat and cold resistant, recommended for temperatures from -70°C and 110°C
  • Complimentary sealing paddle is included in each box

Description

ClearSeal Film fits all SBS format 96 well plates.

Minimal evaporation, minimal cross-well contamination, easy to handle, and optically clear. Single coated, 2 mil (0.05 mm), optically clear polyolefin film with pressure-sensitive silicone-based adhesive. Supplied as a 140 mm x 78 mm film with white polyester release liner (backing). Actual seal area after end tabs removed is 116 x 78 mm Seals well to polypropylene, polystyrene, and polycarbonate plates. Compatible with aqueous and organic solvents. Suitable for use between -70 and 110°C. For best seal, the plate must be sealed with the Film Sealing Paddle HR4-513. ClearSeal Film has a limited shelf life. Must be used before expiration date printed on box.

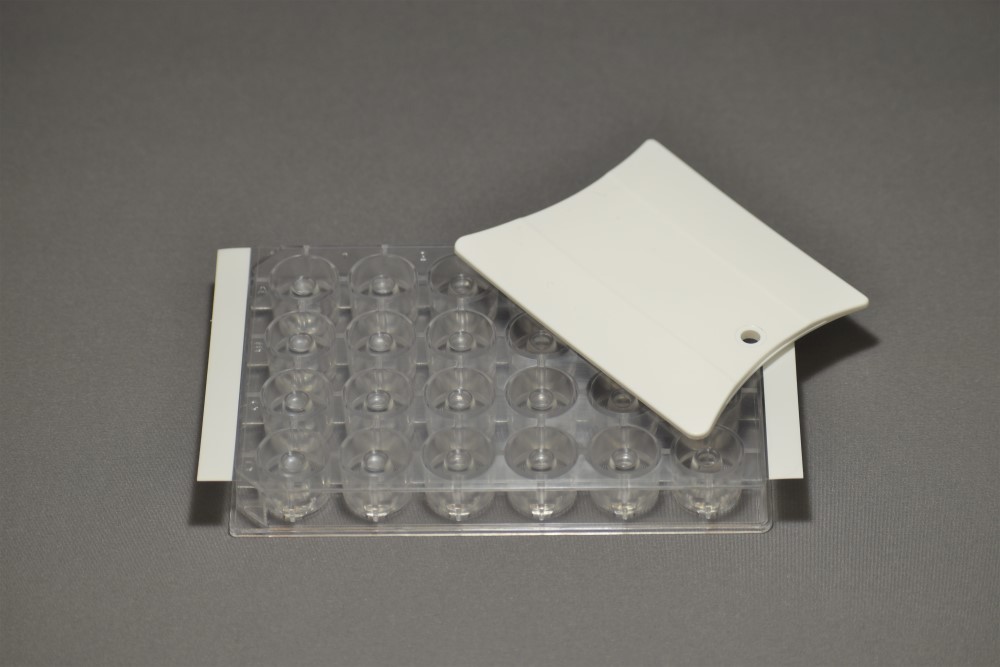

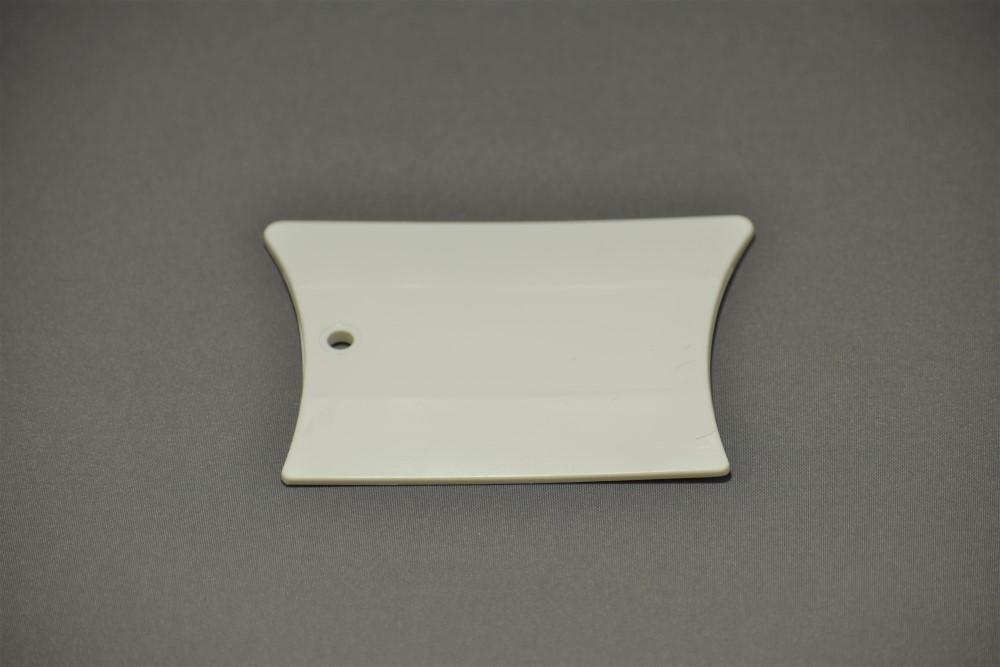

Each pack of film (HR4-521) includes one free Film Sealing Paddle (available separately as HR4-413). HR4-413 Film Sealing Paddle, 3 7/8″ x 2 15/16″, polyethylene, white. 5 paddles per pack. An alternative to the plate roller or brayer for pressing films to assure a secure uniform seal around all wells on 96-well, 384-well, and 1536-well plates. These paddles are especially recommended for sealing films on raised-rim plates because they fit within the rim of the plate.

Store ClearSeal Film at 20°C +/- 10 degrees at 50% RH +/- 10%.

Helpful Tips

  • Sufficient pressure must be applied to activate the silicone adhesive
  • Multiple swipes of the sealing paddle in both directions is highly recommended
  • A 10 minute or greater wait period before using for thermal cycling increases the film-to-plate bond
Show More

ClearSeal Film™ and Applicator

Click to Zoom In

ClearSeal Film™ and Applicator
ClearSeal Film™ and Applicator
ClearSeal Film™ and Applicator
ClearSeal Film™ and Applicator

ClearSeal Film™ and Applicator

Click to Zoom In

ClearSeal Film™ and Applicator
ClearSeal Film™ and Applicator
ClearSeal Film™ and Applicator
ClearSeal Film™ and Applicator

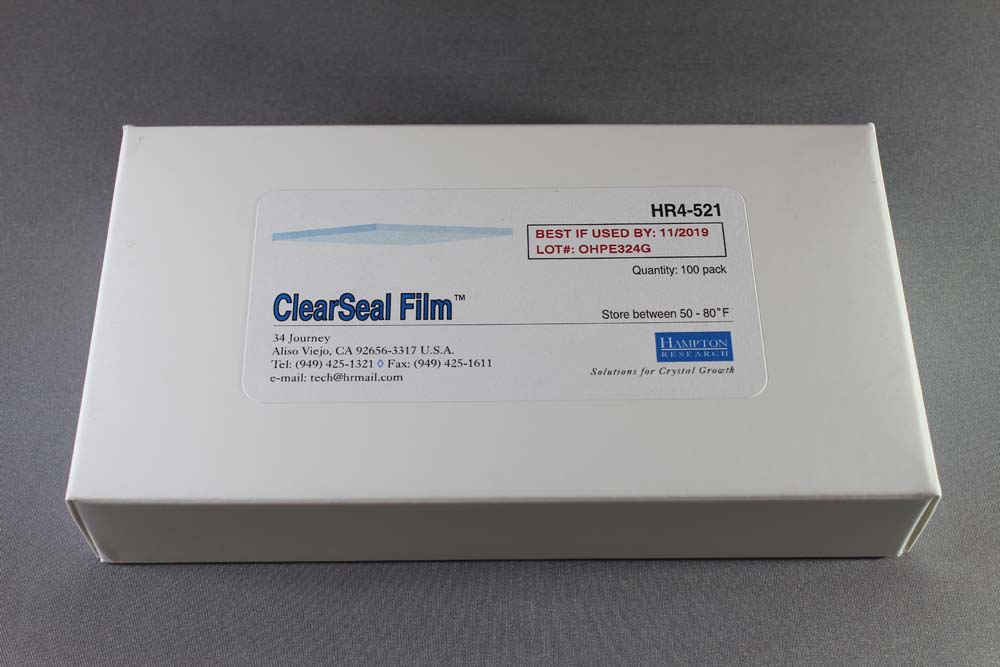

CAT NO

HR4-521

NAME

ClearSeal Film

DESCRIPTION

100 pack

PRICE

$190.00

cart quote

Related Item(S)

  • Film Sealing Paddle

References
