Products > Optimize Reagents > Optimize – Izit Crystal Dye > Izit Crystal Dye

Izit Crystal Dye

Applications

  • Differentiate protein crystals from salt crystals

Features

  • 0.22 micron sterile filtered solution
  • Small molecule dye penetrates solvent channels of macromolecular crystals, coloring the crystals blue
  • Salt crystals cannot absorb Izit and remain colorless
  • Differentiate protein and non-protein based phase separation
  • Formulated in Type 1+ ultrapure water: 18.2 megaohm-cm resistivity at 25°C, < 5 ppb Total Organic Carbon, bacteria free (<1 Bacteria (CFU/ml)), pyrogen free (<0.03 Endotoxin (EU/ml)), RNase-free (< 0.01 ng/mL) and DNase-free (< 4 pg/µL)

Description

A crystal! Is it protein or is it salt?

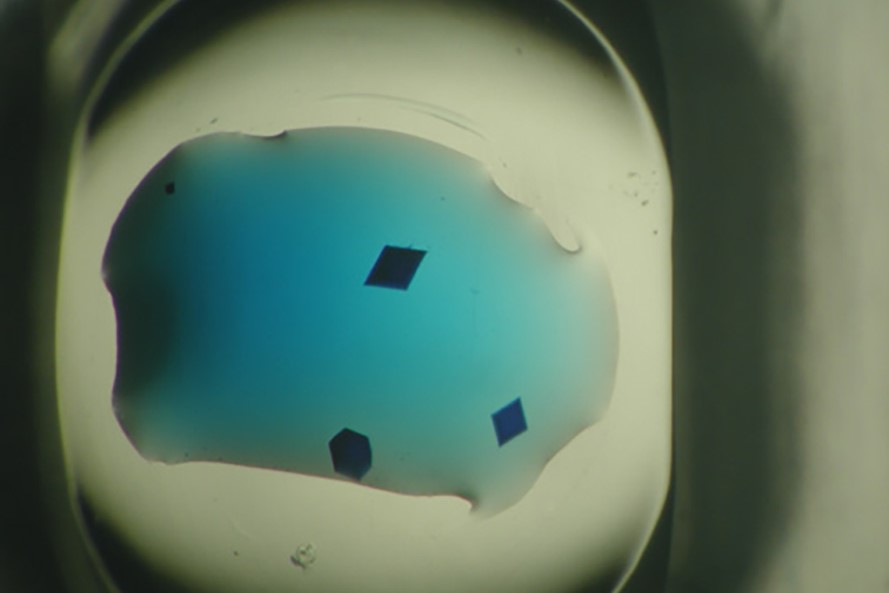

Have you ever asked yourself this question? Sure you could mount the crystal in question and take a quick look at the diffraction pattern but perhaps you′re too lazy or you don′t have an x-ray facility. Well, there′s always the crush test. One simply takes a MicroTool™ or Crystal Probe™ and crushes the suspect crystal. A click or solid crunch is indicative of salt while a powder or silent destruction might indicate one just destroyed a perfectly good protein crystal. Izit is here to help. Simply place 1 µl of Izit in the sample drop and wait for an hour or so. Izit is a small molecule dye which will fill the solvent channels in protein crystals, coloring the crystals blue. With the appropriate dilution, Izit will in fact leave a clear drop with blue crystals, as illustrated in the picture above. Salt crystals do not possess these large solvent channels. Therefore, Izit cannot enter the crystal, leaving one with a clear crystal and a blue drop. Izit is especially nice for small microcrystals or questionable precipitate. The 0.5 ml vial of Izit is sufficient for more than thousands of crystallization drops.

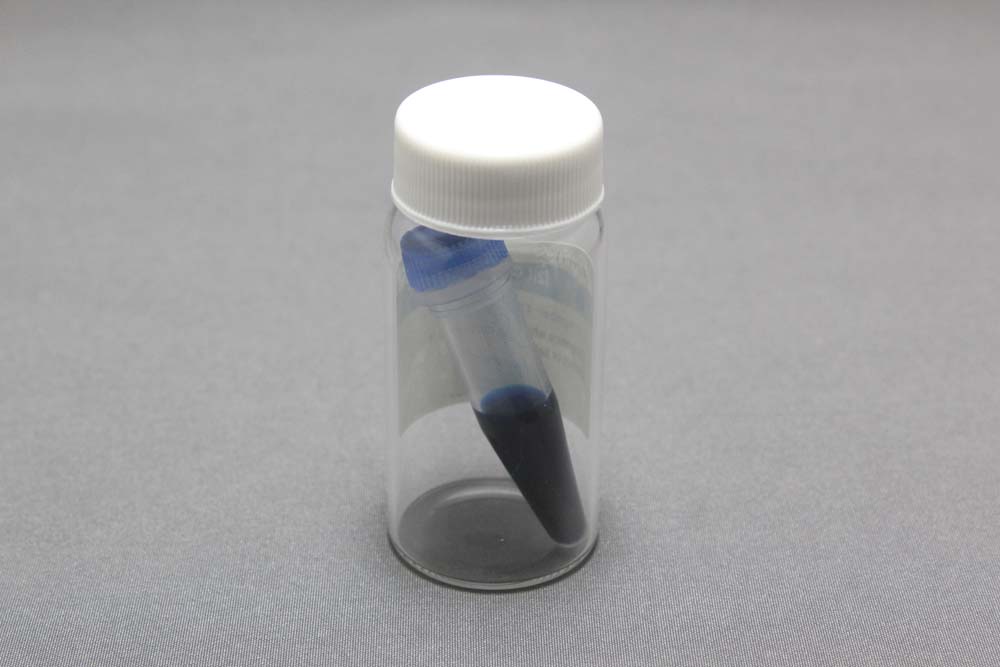

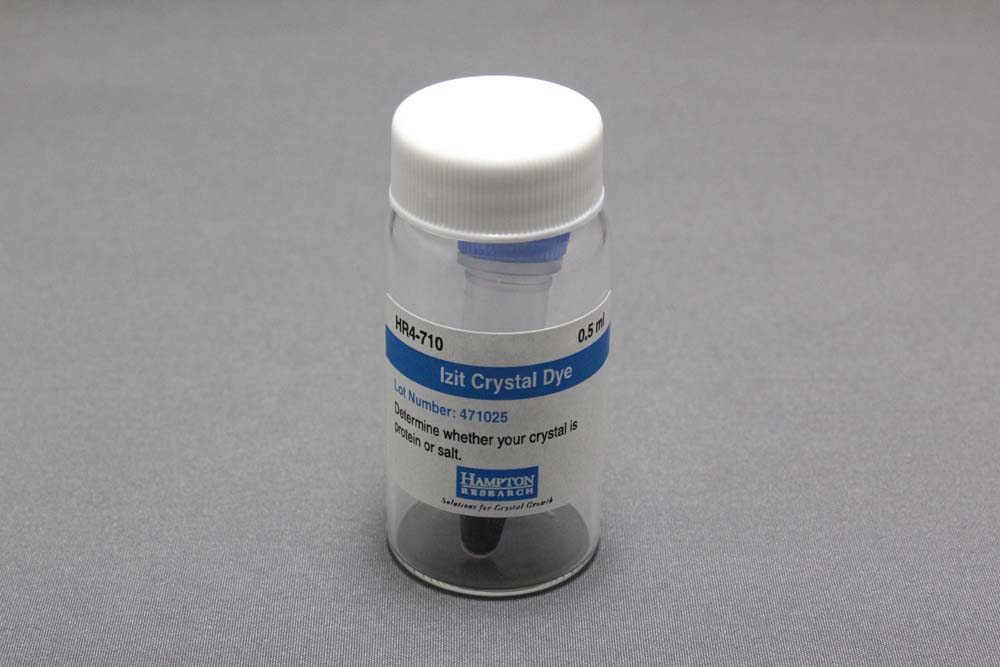

Each Izit vial contains 0.5 ml of Izit dye. All solutions are formulated using ultra-pure water and are sterile filtered. Crystallization accessories are sold separately.

Show More

Izit Crystal Dye

Click to Zoom In

Izit Crystal Dye
Izit Crystal Dye
Izit Crystal Dye
Izit Crystal Dye

Izit Crystal Dye

Click to Zoom In

Izit Crystal Dye
Izit Crystal Dye
Izit Crystal Dye
Izit Crystal Dye

CAT NO

HR4-710

NAME

Izit Crystal Dye

DESCRIPTION

0.5 mL

PRICE

$18.00

cart quote

Support Material(s)

Izit Crystal Dye HR4-710 Izit Crystal Dye User GuideIzit Crystal Dye HR4-710 Izit Crystal Dye SDSIzit Crystal Dye Salt or Protein Crystals?
