PROTEOSTAT® Thermal shift stability assay kit 加速蛋白稳定性筛选

  • 产品特性
  • 相关资料
  • Q&A
  • 参考文献

PROTEOSTAT® Thermal shift stability assay kit                              加速蛋白稳定性筛选

PROTEOSTAT® Thermal shift stability assay kit

加速蛋白稳定性筛选

● 简单、灵敏、均相的荧光检测,无需分离或稀释样品

● 可用于加速优化蛋白稳定性条件

● 无需了解蛋白功能或配体结合位点,也可进行配体结合检测

● 可在较广的温度、pH值和离子强度范围内使用,与常用的缓冲液和辅料兼容

● 为采用多种仪器进行交叉验证提供一种方便、互补的正交方法



PROTEOSTAT® Thermal shift 稳定性检测试剂盒内含有一种检测蛋白聚集的荧光染料,因此可用于监测系统热应力条件下的蛋白稳定性。通过 Thermal shift 分析,可轻松确定大部分蛋白的聚集温度。聚集温度是蛋白稳定性的指标,可用于优化使蛋白聚集最小化的条件,以及鉴定与目标蛋白结合并赋予结构稳定性的配体。配合使用相关的 PROTEOSTAT® 蛋白复性和聚集敏感试剂盒(产品编号:ENZ-51040)可确定合适的蛋白复性条件。增加聚集温度的优化条件可使蛋白的稳定性有所提升。

PROTEOSTAT® Thermal shift stability assay kit                              加速蛋白稳定性筛选

图1. 利用PROTEOSTAT® Thermal shift 稳定性检测试剂盒分析山羊抗小鼠 IgG(pH=7.4,11.2 mg/mL)的典型结果。

图1. 使用 RT-PCR 仪器,以 3°C/min 的速率将温度从30°C升至99°C,同时连续读取荧光值。蓝线表示原始荧光强度数据,红线表示对应的一阶导

图1. 曲线,代表荧光强度曲线的斜率。通过一阶导数图,可得出蛋白的聚集温度(Tagg:斜率最大点)。

PROTEOSTAT® 染料的 Tagg 值不同于 SYPRO® Orange 染料的 Tm 值

PROTEOSTAT® Thermal shift stability assay kit                              加速蛋白稳定性筛选

图2. PROTEOSTAT® 染料所得得聚集温度不同于使用 SYPRO® Orange 染料获得的熔解温度。

图2. SYPRO® Orange 染料是一种环境敏感染料,能够与未折叠蛋白的疏水区结合,用于测量 Tm。T是 Thermal shift 曲线的温度中点,在温度

图2. 中点 T时,样品中的目标蛋白一半呈现出解折叠状态,而另一半保持折叠状态。解折叠不依赖于相邻蛋白。PROTEOSTAT 是一种分子转子染

图2. 料,可与蛋白质聚集体的表面结合。Tagg 是热聚集曲线的中点。蛋白解折叠后开始聚集,聚集取决于相邻蛋白。蛋白浓度越高,聚集的趋势越

图2. 大。

◆产品详情

特点

本试剂盒用于监测系统热应力条件下的蛋白稳定性。

品质保证

每批次 PROTEOSTAT®Thermal shift 稳定性检测试剂盒的样品试剂盒均已按照操作手册中的步骤进行测试。

16 μg/ml β-乳球蛋白的聚集温度单峰位于76°±2°C处。

使用/稳定性

在产品标签注明的日期前,试剂盒组分在适当的储存条件下可稳定保存。

可存放于-20°C的无霜冰箱中。

储存条件

避光。避免反复冻融。

运输方式

干冰运输

储存温度

-20°C

组分

· PROTEOSTAT® TS 检测试剂

· β-乳球蛋白对照

· 10X 检测缓冲液

技术信息/产品说明

应用说明:

Prediction of Aggregation Propensity   and Monitoring of Aggregation of Antibody-Drug Conjugates (ADC) using   ProteoStat® Reagents

检测样本:

PROTEOSTAT® Cited Samples



Enzo及PROTEOSTAT均为Enzo Life Sciences, Inc. 的商标。Grenier为Grenier Bio-One 的注册商标。Enzo的部分产品和产品应用受美国、外国专利以及正在申请的专利的保护。本产品由ENZO LIFE SCIENCES, INC. 制造和销售,仅供研究市场的终端用户作研究使用,不得用于诊断或治疗用途。购买行为不包括在商业上使用、开发或以其他方式利用本产品的任何权利或许可。未经ENZO LIFE SCIENCES, INC. 事先明确书面授权,严禁对本产品进行任何商业用途、开发或利用,或使用本产品进行研发。

监管状态

RUO – 仅供研究使用

◆产品列表

产品编号

产品名称

包装

ENZ-51027-K400

PROTEOSTAT® Thermal shift stability assay kit
PROTEOSTAT® 热稳定检测试剂盒

400 tests

ENZ-51027-K100

100 tests


产品参考文献

1.

Constructive approach for synthesis of a functional IgG using a reconstituted cell-free protein synthesis system: S. Murakami, et al.; Sci. Rep. 9, 671 (2019), Application(s): Purified IgG or Trastuzumab, 摘要全文

2.

Structural insights into humanization of anti-tissue factor antibody 10H10: A. Teplyakov, et al.; MAbs. 10, 269 (2018), Application(s): Monoclonal antibodies, 摘要全文

3.

Protein catalyzed capture agents with tailored performance for in vitro and in vivo applications: M.B. Coppock, et al.; Biopolymers 108, e22934 (2017), Application(s): Stability of peptide-based ligands, 摘要;

4.

Time-Dependent Protein Thermostability Assay: I. Vandecaetsbeek, et al.; Methods Mol. Biol. 1377, 79 (2016), 摘要;

5.

Effect of Polyethylene Glycol Conjugation on Conformational and Colloidal Stability of a Monoclonal Antibody Antigen-Binding Fragment (Fab'): C. Roque, et al.; Mol. Pharm. 12, 562 (2015), 摘要;

6.

Modulating the thermostability of Endoglucanase I from Trichoderma reesei using computational approaches: G. Bayram Akcapinar, et al.; Protein Eng. Des. Sel. 28, 127 (2015), 摘要;

7.

Site-specific conjugation of monomethyl auristatin E to anti-CD30 antibodies improves their pharmacokinetics and therapeutic index in rodent models: F. Lhospice, et al.; Mol. Pharm. 12, 1863 (2015), 摘要;

8.

A general approach to antibody thermostabilization: A.D. McConnell, et al.; MAbs 6, 1274 (2014), Application(s): Stability of antibodies, 摘要全文

9.

Modifications of cysteine residues in the transmembrane and cytoplasmic domains of a recombinant hemagglutinin protein prevents cross-linked multimer formation and potency loss: K.M. Holtz, et al.; BMC Biotechnol. 14, 111 (2014), 摘要;

10.

An integrated approach to extreme thermostabilization and affinity maturation of an antibody: A.D. McConnell, et al.; Protein Eng. Des. Sel. 26, 151 (2013), 摘要;

11.

Mouse, but not human STING, binds and signals in response to the vascular disrupting agent 5,6-dimethylxanthenone-4-acetic acid: J. Conlon, et al.; J. Immunol. 190, 5216 (2013), 摘要;

12.

Optimization of protein purification and characterization using Thermofluor screens: S. Boivin, et al.; Protein Expr. Purif. 91, 192 (2013), (Review), 摘要;

13.

Protein quality control acts on folding intermediates to shape the effects of mutations on organismal fitness: S. Bershtein, et al.; Mol. Cell 49, 133 (2013), Application(s): Aggregation propensity of the DHFR proteins, 摘要;



其他参考文献


1.

Estimation of protein aggregation propensity with a melting point apparatus: A.A. Raibekas; Anal. Biochem. 380, 331 (2008), 摘要;

2.

Thermofluor-based high-throughput stability optimization of proteins for structural studies: U.B. Ericsson, et al.; Anal. Biochem. 357, 289 (2006), 摘要;

3.

Structure of the cross-beta spine of amyloid-like fibrils: R. Nelson, et al.; Nature 435, 773 (2005), 摘要;

4.

Study of the thermal denaturation of ribonuclease A by differential thermal analysis and susceptibility to proteolysis: B.G. Winchester, et al.; Biochem J. 117, 299 (1970), 摘要;

产品编号 产品名称 产品规格 产品等级

Thermal Cycler Dice™ Real Time System III酶试剂盒Takara

上海金畔生物科技有限公司代理Takara酶试剂盒全线产品,欢迎访问官网了解更多产品信息。

Thermal Cycler Dice Real Time System III
品牌 Code No. 产品名称 包装量 价格(元) 说明书 数量
Takara TP950 Thermal Cycler Dice Real Time System III 1 Set 询价 Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III
Takara TP970 Thermal Cycler Dice Real Time System III with PC 1 Set 询价 Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III
Takara TP980 Thermal Cycler Dice Real Time System III with PC/MRQ 1 Set 询价 Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III
Takara TP990 Thermal Cycler Dice Real Time System III (Cy5) with PC 1 Set 询价 Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III
Takara TP840 Multiplate RQ 询价 Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III
收藏产品 加入购物车



Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III



Thermal Cycler Dice™ Real Time System III


■ 制品说明

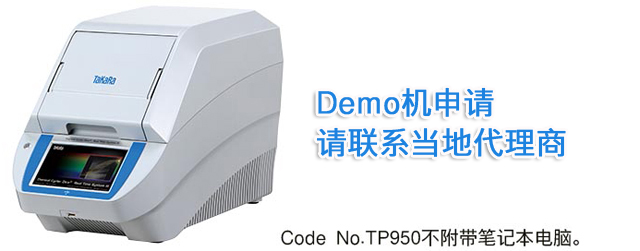

Thermal Cycler Dice Real Time System III (Code No. TP950) 是以使用简便、性价比高、可靠的技术支持为理念开发的Real Time PCR仪。除以往Takara PCR仪受到好评的友好的操作软件外,还搭载触摸屏控制面板,可进行单机 (独立) 操作,以追求操作简便性。此外,与TB Green Fast qPCR Mix (Code No. RR430A) 搭配使用,与其他公司同等级别仪器相比较时,TP950的反应时间较短 (嵌合荧光染料检测法) ,且性价比高,是一款值得购买的定量PCR仪器。
此外我公司可提供满意的技术支持,通过技术支持热线由专业人员为您解答一切有关试剂和仪器的咨询。

■ 仪器特点
◇ 搭载触摸屏,可独立操作,支持英语界面,仪器软件更加追求操作简便性。
Thermal Cycler Dice™ Real Time System III
◇ 可做高速定量PCR反应
使用嵌合荧光染料检测法时,在同等级别的快速定量PCR仪中表现出色,在与新试剂TB Green Fast qPCR Mix搭配使用,跟其他公司同等级别仪器相比较,TP950的反应时间较短。
实验例:
各公司PCR仪分别使用各自推荐的试剂和反应条件进行反应,根据PCR反应和融解曲线对应的反应时间进行了比较:
Thermal Cycler Dice™ Real Time System III
(Takara Bio Inc.比较结果)
◇ 专为研究人员设计的便于使用操作的定量软件

丰富、操作简便的程序设置
软件由5个简单的操作界面组成,在设计上更重视直观性。从Setup到结果分析,即使初学者也能够顺利地完成操作。
提供多种分析方法
对于研究人员需求的各种分析方法,仅需点击即可实现一键转换。
计算Ct值:Crossing Point法和2nd Derivative Maximum法一键转换
相对定量分析方法:标准曲线法、ΔΔCt法(比较Ct法)一键转换
定性分析方法:包括SNP Genotyping Assay、Plus/Minus Assay
遵照MIQE原则,可输出RDML文件
搭载相对定量分析软件「Multiplate RQ」
<Multiplate RQ的特点>
可使用多个内参基因(管家基因)进行校正
多个96孔板、多个检测样品、多个基因的相对定量解析更方便
可用于标准曲线法和ΔΔCt法
以实验图表及各种格式输出
可一次性分析多个实验数据
Thermal Cycler Dice Real Time SystemⅢ with PC/MRQ (Code No.: TP980) 配置了此软件。Thermal Cycler Dice Real Time System Ⅲ (Code No.: TP950) 可选择追加安装此软件。
Thermal Cycler Dice™ Real Time System III

性能参数
外形尺寸 290(W) ×575(D) ×360(H) mm
重量 16.1 kg
电源 AC100~240 V、50/60 Hz、750 VA
温控机理 Peltier元件
荧光激发光源 LED灯 100 W
最大升温速度 5.0℃/秒以上
最大降温速度 4.0℃/秒以上
温控范围 10.0℃~99.9℃(最小单位0.1℃)
温度精度 94℃/55℃时:±0.5℃;10.0℃时:±1.0℃
荧光激发波长 2种 (最多可搭载4种)
荧光检测通道 2种 (FAM、ROX/Texas Red)
(最多可搭载4种荧光检测通道) 可选择追加通道:(HEX/VIC、Cy5)
荧光检测法 CCD相机检测
融解曲线分析 可以
实时监测 可以
同时鉴定样品数 96
反应体系 推荐25 μl (最大50 μl)
Sample Block 0.1ml tube、96 well Plate
嵌入式操作系统 Windows Embedded Standard 7
控制面板 7英寸液晶触摸屏
(800×480、400 cd/m2) LED背光模组
计算机操作系统 Windows 7、8.1
相对定量解析软件
「Multiplate RQ」
仅Thermal Cycler Dice Real Time System III with PC/MRQ搭载






页面更新:2022-09-01 16:00:11

Thermal Cycler Dice™ Real Time System III 相关耗材酶试剂盒Takara

上海金畔生物科技有限公司代理Takara酶试剂盒全线产品,欢迎访问官网了解更多产品信息。

Thermal Cycler Dice Real Time System III 相关耗材
品牌 Code No. 产品名称 包装量 价格(元) 说明书 数量
Takara NJ904 FrameStar® 0.1ml 96 well qPCR plate 10 plates ¥759 Thermal Cycler Dice™ Real Time System III 相关耗材 Thermal Cycler Dice™ Real Time System III 相关耗材
Takara NJ500 Sealing Film for Real Time 100 pcs ¥3,044 Thermal Cycler Dice™ Real Time System III 相关耗材 Thermal Cycler Dice™ Real Time System III 相关耗材
Takara 9090 Plate Sealing Pads 5 pcs ¥240 Thermal Cycler Dice™ Real Time System III 相关耗材 Thermal Cycler Dice™ Real Time System III 相关耗材
Takara NJ902 0.1 ml 8-strip tube, individual Flat Caps 120 strips ¥1,346 Thermal Cycler Dice™ Real Time System III 相关耗材 Thermal Cycler Dice™ Real Time System III 相关耗材
Takara NJ907 0.1 ml 8-strip -neo- tube & cap Set 1 set ¥1,100 Thermal Cycler Dice™ Real Time System III 相关耗材 Thermal Cycler Dice™ Real Time System III 相关耗材
收藏产品 加入购物车


Limited Use Label License:
NJ904:[L76]

■ 制品说明
配合Thermal Cycler Dice Real Time System III系列仪器 (Code No.:TP950/TP970/TP980/TP990) 使用的反应板和反应管。
注:上述制品已经进行过高压灭菌处理,无需再次灭菌。

【96well Plate & Flat cap】
 Sealing Film for Real Time (Code No.: NJ500)

【8-strip tube & Flat cap】
0.1 ml 8-strip tube, individual Flat Caps*1(Code No.: NJ902)
*1:独立型Flat Cap 8联管。使用剪刀剪开,可作为带有Flat Cap的Single Tube使用。
0.1 ml 8-strip -neo- tube & cap Set(Code No.: NJ907)

Thermal Cycler Dice™ Real Time System III 相关耗材
0.1 ml 8-strip tube, individual Flat Caps
(Code No.: NJ902)

Thermal Cycler Dice™ Real Time System III 相关耗材
0.1 ml 8-strip -neo- tube & cap Set
(Code No.: NJ907)



页面更新:2022-09-02 08:40:03

Thermal Cycler Dice™ Real Time System相关制品酶试剂盒Takara

上海金畔生物科技有限公司代理Takara酶试剂盒全线产品,欢迎访问官网了解更多产品信息。

Thermal Cycler Dice Real Time System相关制品
品牌 Code No. 产品名称 包装量 价格(元) 说明书 数量
Takara NJ400 96well Hi-Plate for Real Time 10 plates ¥491 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara NJ500 Sealing Film for Real Time 100 pieces ¥3,044 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara 9090 Plate Sealing Pads 5 pieces ¥240 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara NJ300 0.2 ml Hi-8-Tube 125 strips ¥1,350 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara NJ302 0.2 ml Hi-8-Flat Cap 125 strips ¥473 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara NJ600 0.2 ml 8-strip tube,individual Flat Caps 120 strips ¥1,146 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara TP802 Filter Unit(HEX/VIC®) for Thermal Cycler Dice Real Time System 1 pc 询价 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara TP803 Filter Unit(Cy®5) for Thermal Cycler Dice Real Time System 1 pc 询价 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara NJ401 0.2 ml 96well-plate for Real Time (Frosted) 10 plates ¥457 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara NJ402 Flat Cap for PCR Plate 125 strips ¥800 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
收藏产品 加入购物车

■ 制品说明
配合Thermal Cycler Dice Real Time System系列仪器(Code No.: TP900/TP960/TP850/TP870/TP800/TP860)使用的反应板和反应管。

[96well Plate&Seal]
Thermal Cycler Dice™ Real Time System相关制品
96well Hi-Plate for Real Time (Code No.: NJ400)
Sealing Film for Real Time (Code No.: NJ500)
Plate Sealing Pads*1 (Code No.: 9090)
*1 用于将密封膜完全贴合在96孔板上。

[8-strip tube & Flat Cap]
Thermal Cycler Dice™ Real Time System相关制品
0.2 ml Hi-8-Tube (Code No.: NJ300)
0.2 ml Hi-8-Flat Cap (NJ300用的8联Cap) (Code No.: NJ302)
0.2 ml 8-strip tube, individual Flat Caps*2 (Code No.: NJ600)
*2 独立型Flat Cap 8联管。使用剪刀剪开,可作为带有Flat Cap的Single Tube使用。




页面更新:2021-01-18 16:32:43

Thermal Cycler Dice™ Real Time System Lite相关制品酶试剂盒Takara

上海金畔生物科技有限公司代理Takara酶试剂盒全线产品,欢迎访问官网了解更多产品信息。

Thermal Cycler Dice Real Time System Lite相关制品
品牌 Code No. 产品名称 包装量 价格(元) 说明书 数量
Takara NJ700 48 well snap plate 20 plates ¥611 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
Takara NJ720 Flat cap for snap plate 120 strips ¥461 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
Takara NJ300 0.2 ml Hi-8-Tube 125 strips ¥1,350 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
Takara NJ302 0.2 ml Hi-8-Flat Cap 125 strips ¥473 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
Takara NJ600 0.2 ml 8-strip tube,individual Flat Caps 120 strips ¥1,146 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
Takara TP704 FilterUnit Premium(HEX/VIC) for LED 1 pc 询价 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
Takara TP703 Filter Unit (Cy5) for TP700 1 pc 询价 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
收藏产品 加入购物车

无标题文档



■ 制品说明
配合Thermal Cycler Dice Real Time Lite(Code No.: TP700)使用的反应板和反应管。
(注)都已经进行过高压灭菌处理。

[48 well Plate & Flat cap]
48 well snap plate*1 (Code No.: NJ700)
Flat cap for snap plate (NJ700用的8联Cap)(Code No.: NJ720)

*1 可拆分为24 well×2的形式。

[8-strip tube & Flat Cap]
0.2 ml Hi-8-Tube (Code No.: NJ300)
0.2 ml Hi-8-Flat Cap (NJ300用的8联Cap) (Code No.: NJ302)
0.2 ml 8-strip tube, individual Flat Caps*2 (Code No.: NJ600)

*2独立型Flat Cap用于8联管。使用剪刀剪开,可作为带有Flat Cap的Single Tube使用。


页面更新:2019-11-13 11:41:17

TaKaRa PCR Thermal Cycler Dice™ Touch酶试剂盒Takara

上海金畔生物科技有限公司代理Takara酶试剂盒全线产品,欢迎访问官网了解更多产品信息。

TaKaRa PCR Thermal Cycler Dice Touch
品牌 Code No. 产品名称 包装量 价格(元) 说明书 数量
Takara TP350 TaKaRa PCR Thermal Cycler Dice Touch 1 System 询价 TaKaRa PCR Thermal Cycler Dice™ Touch TaKaRa PCR Thermal Cycler Dice™ Touch
收藏产品 加入购物车

TaKaRa PCR Thermal Cycler Dice™ Touch

■ 制品说明
TaKaRa PCR Thermal Cycler Dice Touch(Code No.: TP350)拥有紧凑的机身、宽大的触摸屏和高配置的加热模块,是一款性能优良的多功能96孔PCR仪。从主菜单进入向导模式(Wizard)之后,可以很便捷地编辑反应程序,并且能立即运行。
可设置最大24℃的梯度温差,摸索适宜的PCR反应条件将变得简单易行。具有Touchdown PCR、LD-PCR等功能,也能运行多种条件的PCR程序。非常小巧轻便,很适合个人使用。

■ 仪器特点
界面简洁直观,功能多样;
可设置最大24℃的梯度温差;
7英寸的宽大触屏,编写程序简单快捷;
Peltier元件性能优良,孔间均一性高,PCR反应重复性好,实验表现出色;
可用USB闪存保存或读取反应程序;
体积小巧,移动轻便。

性能参数
外形尺寸 180 (W) x 285 (D) x 205(H) mm
重量 5.0 kg
样品处理数 96 × 0.2 ml PCR管; 12 × 8连管; 1 × 96孔板
温控元件 Peltier元件
最大升温速度 3.0℃/秒以上
最大降温速度 2.5℃/秒以上
温度精度 ±0.5℃ (30.0℃-99.9℃)
温度均匀度 ±0.3℃ (30.0℃-99.9℃)
温控范围 4-99℃
热盖温度范围 60-115℃
操作界面显示 7英寸彩色触摸屏
储存程序数量 本机存储10,000个以上 (还可存储在USB闪存中)
梯度功能 梯度温控范围:4-99℃,梯度级数:12;梯度温差范围:0-24℃
电源电压 AC100-240V,50/60 Hz,5A(100V时)


页面更新:2020-06-12 14:39:55

TaKaRa PCR Thermal Cycler Dice™ Touch酶试剂盒Takara

上海金畔生物科技有限公司代理Takara酶试剂盒全线产品,欢迎访问官网了解更多产品信息。

TaKaRa PCR Thermal Cycler Dice Touch
品牌 Code No. 产品名称 包装量 价格(元) 说明书 数量
Takara TP350 TaKaRa PCR Thermal Cycler Dice Touch 1 System 询价 TaKaRa PCR Thermal Cycler Dice™ Touch TaKaRa PCR Thermal Cycler Dice™ Touch
收藏产品 加入购物车

TaKaRa PCR Thermal Cycler Dice™ Touch

■ 制品说明
TaKaRa PCR Thermal Cycler Dice Touch(Code No.: TP350)拥有紧凑的机身、宽大的触摸屏和高配置的加热模块,是一款性能优良的多功能96孔PCR仪。从主菜单进入向导模式(Wizard)之后,可以很便捷地编辑反应程序,并且能立即运行。
可设置最大24℃的梯度温差,摸索适宜的PCR反应条件将变得简单易行。具有Touchdown PCR、LD-PCR等功能,也能运行多种条件的PCR程序。非常小巧轻便,很适合个人使用。

■ 仪器特点
界面简洁直观,功能多样;
可设置最大24℃的梯度温差;
7英寸的宽大触屏,编写程序简单快捷;
Peltier元件性能优良,孔间均一性高,PCR反应重复性好,实验表现出色;
可用USB闪存保存或读取反应程序;
体积小巧,移动轻便。

性能参数
外形尺寸 180 (W) x 285 (D) x 205(H) mm
重量 5.0 kg
样品处理数 96 × 0.2 ml PCR管; 12 × 8连管; 1 × 96孔板
温控元件 Peltier元件
最大升温速度 3.0℃/秒以上
最大降温速度 2.5℃/秒以上
温度精度 ±0.5℃ (30.0℃-99.9℃)
温度均匀度 ±0.3℃ (30.0℃-99.9℃)
温控范围 4-99℃
热盖温度范围 60-115℃
操作界面显示 7英寸彩色触摸屏
储存程序数量 本机存储10,000个以上 (还可存储在USB闪存中)
梯度功能 梯度温控范围:4-99℃,梯度级数:12;梯度温差范围:0-24℃
电源电压 AC100-240V,50/60 Hz,5A(100V时)


页面更新:2020-06-12 14:39:55

Thermal Cycler Dice™ Real Time System III酶试剂盒Takara

上海金畔生物科技有限公司代理Takara酶试剂盒全线产品,欢迎访问官网了解更多产品信息。

Thermal Cycler Dice Real Time System III
品牌 Code No. 产品名称 包装量 价格(元) 说明书 数量
Takara TP950 Thermal Cycler Dice Real Time System III 1 Set 询价 Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III
Takara TP970 Thermal Cycler Dice Real Time System III with PC 1 Set 询价 Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III
Takara TP980 Thermal Cycler Dice Real Time System III with PC/MRQ 1 Set 询价 Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III
Takara TP990 Thermal Cycler Dice Real Time System III (Cy5) with PC 1 Set 询价 Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III
Takara TP840 Multiplate RQ 1 Set 询价 Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III
收藏产品 加入购物车



Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III Thermal Cycler Dice™ Real Time System III



Thermal Cycler Dice™ Real Time System III


■ 制品说明
Thermal Cycler Dice Real Time System III (Code No. TP950) 是以使用简便、性价比高、可靠的技术支持为理念开发的Real Time PCR仪。除以往Takara PCR仪受到好评的友好的操作软件外,还搭载触摸屏控制面板,可进行单机 (独立) 操作,以追求操作简便性。此外,与TB Green Fast qPCR Mix (Code No. RR430A) 搭配使用,与其他公司同等级别仪器相比较时,TP950的反应时间较短 (嵌合荧光染料检测法) ,且性价比高,是一款值得购买的定量PCR仪器。
此外我公司可提供满意的技术支持,通过技术支持热线由专业人员为您解答一切有关试剂和仪器的咨询。

■ 仪器特点
◇ 搭载触摸屏,可独立操作,支持英语界面,仪器软件更加追求操作简便性。
Thermal Cycler Dice™ Real Time System III
◇ 可做高速定量PCR反应
使用嵌合荧光染料检测法时,在同等级别的快速定量PCR仪中表现出色,在与新试剂TB Green Fast qPCR Mix搭配使用,跟其他公司同等级别仪器相比较,TP950的反应时间较短。
实验例:
各公司PCR仪分别使用各自推荐的试剂和反应条件进行反应,根据PCR反应和融解曲线对应的反应时间进行了比较:
Thermal Cycler Dice™ Real Time System III
(Takara Bio Inc.比较结果)
◇ 专为研究人员设计的便于使用操作的定量软件

丰富、操作简便的程序设置
软件由5个简单的操作界面组成,在设计上更重视直观性。从Setup到结果分析,即使初学者也能够顺利地完成操作。
提供多种分析方法
对于研究人员需求的各种分析方法,仅需点击即可实现一键转换。
计算Ct值:Crossing Point法和2nd Derivative Maximum法一键转换
相对定量分析方法:标准曲线法、ΔΔCt法(比较Ct法)一键转换
定性分析方法:包括SNP Genotyping Assay、Plus/Minus Assay
遵照MIQE原则,可输出RDML文件
搭载相对定量分析软件「Multiplate RQ」
<Multiplate RQ的特点>
可使用多个内参基因(管家基因)进行校正
多个96孔板、多个检测样品、多个基因的相对定量解析更方便
可用于标准曲线法和ΔΔCt法
以实验图表及各种格式输出
可一次性分析多个实验数据
Thermal Cycler Dice Real Time SystemⅢ with PC/MRQ (Code No.: TP980) 配置了此软件。Thermal Cycler Dice Real Time System Ⅲ (Code No.: TP950) 可选择追加安装此软件。
Thermal Cycler Dice™ Real Time System III

性能参数
外形尺寸 290(W) ×575(D) ×360(H) mm
重量 16.1 kg
电源 AC100~240 V、50/60 Hz、750 VA
温控机理 Peltier元件
荧光激发光源 LED灯 100 W
最大升温速度 5.0℃/秒以上
最大降温速度 4.0℃/秒以上
温控范围 10.0℃~99.9℃(最小单位0.1℃)
温度精度 94℃/55℃时:±0.5℃;10.0℃时:±1.0℃
荧光激发波长 2种 (最多可搭载4种)
荧光检测通道 2种 (FAM、ROX/Texas Red)
(最多可搭载4种荧光检测通道) 可选择追加通道:(HEX/VIC、Cy5)
荧光检测法 CCD相机检测
融解曲线分析 可以
实时监测 可以
同时鉴定样品数 96
反应体系 推荐25 μl (最大50 μl)
Sample Block 0.1ml tube、96 well Plate
嵌入式操作系统 Windows Embedded Standard 7
控制面板 7英寸液晶触摸屏
(800×480、400 cd/m2) LED背光模组
计算机操作系统 Windows 7、8.1
相对定量解析软件
「Multiplate RQ」
仅Thermal Cycler Dice Real Time System III with PC/MRQ搭载






页面更新:2022-09-01 15:59:37

Thermal Cycler Dice™ Real Time System III 相关耗材酶试剂盒Takara

上海金畔生物科技有限公司代理Takara酶试剂盒全线产品,欢迎访问官网了解更多产品信息。

Thermal Cycler Dice Real Time System III 相关耗材
品牌 Code No. 产品名称 包装量 价格(元) 说明书 数量
Takara NJ904 FrameStar® 0.1ml 96 well qPCR plate 10 plates ¥759 Thermal Cycler Dice™ Real Time System III 相关耗材 Thermal Cycler Dice™ Real Time System III 相关耗材
Takara NJ500 Sealing Film for Real Time 100 pieces ¥3,044 Thermal Cycler Dice™ Real Time System III 相关耗材 Thermal Cycler Dice™ Real Time System III 相关耗材
Takara 9090 Plate Sealing Pads 5 pieces ¥240 Thermal Cycler Dice™ Real Time System III 相关耗材 Thermal Cycler Dice™ Real Time System III 相关耗材
Takara NJ902 0.1 ml 8-strip tube, individual Flat Caps 120 strips ¥1,346 Thermal Cycler Dice™ Real Time System III 相关耗材 Thermal Cycler Dice™ Real Time System III 相关耗材
Takara NJ907 0.1 ml 8-strip -neo- tube & cap Set 1 set ¥1,100 Thermal Cycler Dice™ Real Time System III 相关耗材 Thermal Cycler Dice™ Real Time System III 相关耗材
收藏产品 加入购物车


Limited Use Label License:
NJ904:[L76]

■ 制品说明
配合Thermal Cycler Dice Real Time System III系列仪器 (Code No.:TP950/TP970/TP980/TP990) 使用的反应板和反应管。
注:上述制品已经进行过高压灭菌处理,无需再次灭菌。

【96well Plate & Flat cap】
 Sealing Film for Real Time (Code No.: NJ500)

【8-strip tube & Flat cap】
0.1 ml 8-strip tube, individual Flat Caps*1(Code No.: NJ902)
*1:独立型Flat Cap 8联管。使用剪刀剪开,可作为带有Flat Cap的Single Tube使用。
0.1 ml 8-strip -neo- tube & cap Set(Code No.: NJ907)

Thermal Cycler Dice™ Real Time System III 相关耗材
0.1 ml 8-strip tube, individual Flat Caps
(Code No.: NJ902)

Thermal Cycler Dice™ Real Time System III 相关耗材
0.1 ml 8-strip -neo- tube & cap Set
(Code No.: NJ907)



页面更新:2022-09-02 08:37:51

Thermal Cycler Dice™ Real Time System相关制品酶试剂盒Takara

上海金畔生物科技有限公司代理Takara酶试剂盒全线产品,欢迎访问官网了解更多产品信息。

Thermal Cycler Dice Real Time System相关制品
品牌 Code No. 产品名称 包装量 价格(元) 说明书 数量
Takara NJ400 96well Hi-Plate for Real Time 10 plates ¥491 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara NJ500 Sealing Film for Real Time 100 pieces ¥3,044 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara 9090 Plate Sealing Pads 5 pieces ¥240 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara NJ300 0.2 ml Hi-8-Tube 125 strips ¥1,350 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara NJ302 0.2 ml Hi-8-Flat Cap 125 strips ¥473 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara NJ600 0.2 ml 8-strip tube,individual Flat Caps 120 strips ¥1,146 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara TP802 Filter Unit(HEX/VIC®) for Thermal Cycler Dice Real Time System 1 pc 询价 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara TP803 Filter Unit(Cy®5) for Thermal Cycler Dice Real Time System 1 pc 询价 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara NJ401 0.2 ml 96well-plate for Real Time (Frosted) 10 plates ¥457 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
Takara NJ402 Flat Cap for PCR Plate 125 strips ¥800 Thermal Cycler Dice™ Real Time System相关制品 Thermal Cycler Dice™ Real Time System相关制品
收藏产品 加入购物车

■ 制品说明
配合Thermal Cycler Dice Real Time System系列仪器(Code No.: TP900/TP960/TP850/TP870/TP800/TP860)使用的反应板和反应管。

[96well Plate&Seal]
Thermal Cycler Dice™ Real Time System相关制品
96well Hi-Plate for Real Time (Code No.: NJ400)
Sealing Film for Real Time (Code No.: NJ500)
Plate Sealing Pads*1 (Code No.: 9090)
*1 用于将密封膜完全贴合在96孔板上。

[8-strip tube & Flat Cap]
Thermal Cycler Dice™ Real Time System相关制品
0.2 ml Hi-8-Tube (Code No.: NJ300)
0.2 ml Hi-8-Flat Cap (NJ300用的8联Cap) (Code No.: NJ302)
0.2 ml 8-strip tube, individual Flat Caps*2 (Code No.: NJ600)
*2 独立型Flat Cap 8联管。使用剪刀剪开,可作为带有Flat Cap的Single Tube使用。




页面更新:2021-01-18 16:32:43

Thermal Cycler Dice™ Real Time System Lite相关制品酶试剂盒Takara

上海金畔生物科技有限公司代理Takara酶试剂盒全线产品,欢迎访问官网了解更多产品信息。

Thermal Cycler Dice Real Time System Lite相关制品
品牌 Code No. 产品名称 包装量 价格(元) 说明书 数量
Takara NJ720 Flat cap for snap plate 120 strips ¥461 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
Takara NJ700 48 well snap plate 20 plates ¥611 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
Takara NJ300 0.2 ml Hi-8-Tube 125 strips ¥1,350 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
Takara NJ302 0.2 ml Hi-8-Flat Cap 125 strips ¥473 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
Takara NJ600 0.2 ml 8-strip tube,individual Flat Caps 120 strips ¥1,146 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
Takara TP704 FilterUnit Premium(HEX/VIC) for LED 1 pc 询价 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
Takara TP703 Filter Unit (Cy5) for TP700 1 pc 询价 Thermal Cycler Dice™ Real Time System Lite相关制品 Thermal Cycler Dice™ Real Time System Lite相关制品
收藏产品 加入购物车

无标题文档



■ 制品说明
配合Thermal Cycler Dice Real Time Lite(Code No.: TP700)使用的反应板和反应管。
(注)都已经进行过高压灭菌处理。

[48 well Plate & Flat cap]
48 well snap plate*1 (Code No.: NJ700)
Flat cap for snap plate (NJ700用的8联Cap)(Code No.: NJ720)

*1 可拆分为24 well×2的形式。

[8-strip tube & Flat Cap]
0.2 ml Hi-8-Tube (Code No.: NJ300)
0.2 ml Hi-8-Flat Cap (NJ300用的8联Cap) (Code No.: NJ302)
0.2 ml 8-strip tube, individual Flat Caps*2 (Code No.: NJ600)

*2独立型Flat Cap用于8联管。使用剪刀剪开,可作为带有Flat Cap的Single Tube使用。


页面更新:2019-11-13 11:47:38
